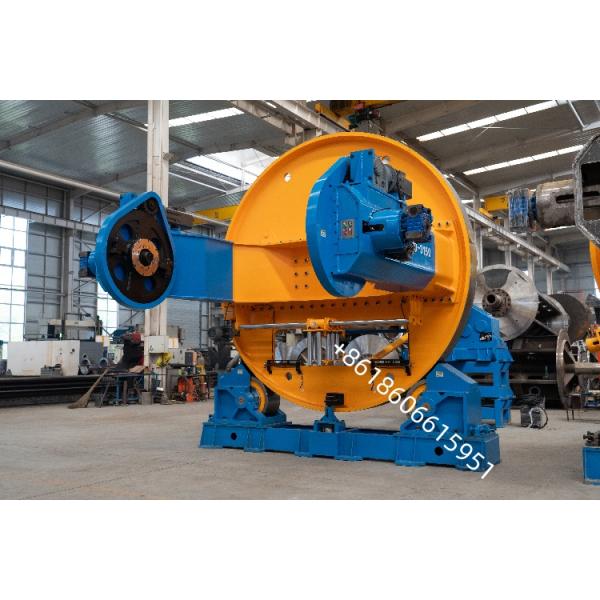

High Speed 3150 Drum Twister Big Cross Section And Long Length Power Cable With Taping

  • 1
  • 2
  • 3

Brand Name : Beyde

Model Number : 3150

Certification : CE

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, Western Union

Supply Ability : 200 set/year

Delivery Time : 90 days

Packaging Details : Safety container packing

Usage : Twisting,Stranding,laying up

Name : 2500bobbin Drum Twister

Application : armoring,Cable Making Industry

Warranty : 12 Months

Voltage : 380V

Maximum linear speed(rpm) : 50

Material : insulated wire

Plc : SIEMENS

Taping pitch(mm) : Step-less

Central pay off drum diameter : 3150(mm)

Cage rotate speed : 44

Side pay off drum diameter : 3150(mm)

Contact Now

High Speed 3150 Drum Twister Big Cross Section And Long Length Power Cable With Taping

High Speed 3150 Drum Twister Big Cross Section And Long Length Power Cable With Taping

The Drum Twister/Laying up Machine is mainly used for cabling large section and great length power cables and communication cables, and stranding of high voltage or extra high voltage Milliken conductors, and also for steel tape or wires armoring and copper tape or wires armoring.

​The CPD drum twister with caterpillar is a versatile machine designed for cabling, screening, and armoring of conductors.

HV cables (Milliken) : laying-up of Cu conductors
Screening and armouring operations
Thanks to its flexibility, it is also used for steel wire armouring or/and copper wire screening of power cable by using central rotating pay-off for the cable to be armoured/screened and with addition of simple pay-off stands for copper/steel wires.
In such configuration the line can also be used in taping mode for large cable with pay-off and take-up being stationary.

cal Parameters

Model 3150 3600
Pay Off Reel Φ 1250 1600 1600 1600 2000 2500
Rotating Caterpillar Tread 1000 1000 1500 1500 3000/5000 3000/5000
Take-Up Drum Φ 1600 2000 2250 2600 3150 3600
Armoring Wires 48 60 72 84 96 96
Finished Cable Φ 50 60 80 100 130 130
Rotor Speed 140 110 90 70 40 40

High Speed 3150 Drum Twister Big Cross Section And Long Length Power Cable With Taping

High Speed 3150 Drum Twister Big Cross Section And Long Length Power Cable With Taping

Electrical control system

  • The main control cabinet is operated by touch screen PLC to coordinate and control the various parameter settings of each unit during the cable forming process, and can display the operating speed and parameters of each unit in real time, facilitating timely modification and adjustment of the operating parameters of each unit.
  • The power supply is a three wire five phase system 380V (± 10%) 50HZ
  • Working principle of electrical appliances: All driving motors are equipped with encoders, and the encoder feedback runs in the control system. The entire machine is controlled by PLC: the frequency converter, braking unit, air compressor, etc. complete the start-up, jog, normal parking and other operations, ensuring stable synchronization performance.
  • Reserved Ethernet interface. Equipped with remote communication module and remote technical service support function (customers provide their own SIM card or WiFi signal
  • Safety protection: This machine has multiple safety protections, which can take corresponding protective measures in case of faults or situations that do not meet the normal operation of the equipment, and timely display the fault point on the screen of the main control cabinet, so that operators can make timely and accurate judgments and effective treatment plans.
  • Protection of the main transmission system, motors, and fans
  • Horizontal limit protection for each wire collection and release rack
  • Traverse overtravel protection
  • Meter counting stop protection
  • Air pressure undervoltage protection
  • Complete wire machine shutdown protection
  • Tape breakage and completion protection
  • Opening the protective cover around the package for protection
  • Hydraulic lifting platform limit protection
Operation and maintenance manual 1 pc
Foundation diagram 1 pc
Overall diagram 1 pc
Electrical drawing 1 pc
Air circuit layout 1 pc
Lubrication diagram 1 pc
Electrical panel diagram 1 pc
AC driver instructions 1 pc
Bearing list 1 pc

High Speed 3150 Drum Twister Big Cross Section And Long Length Power Cable With Taping

Equipment Color:

Equipment body: RAL5015 sky blue
Rotating part: RAL2004 pure orange
Protective cover: RAL2004 pure orange
Electric control cabinet: RAL7032 pebble gray

Cable & wire and wiring work:

The cable & wire and wiring work inside machine part is supplied by the supplier; the cable & wire and wiring work inside electrical cabinet is supplied by the supplier
